How to Use Device Mode in Google Chrome

Written by UX Design Expert

August 18, 2022
How to Use Device Mode in Google Chrome

Device Mode is a responsive design testing tool built into Google Chrome and other Chromium-based web browsers such as Microsoft Edge and Opera.

Responsive design is the technique of making sure that websites work well on all screen sizes, screen densities, web browsers (all versions on all operating systems), and with all input methods (e.g. touch, mouse, keyboard, and screen reader). Responsive design must also take users’ preferences into account (e.g. their light/dark mode preference and reduced motion preference) and the quality of their internet connection.

Google Chrome’s Device Mode makes it easier for web developers to test most of these. Let’s see how.

Opening Device Mode


Unlike Firefox, which allows users to open ‘Responsive Design Mode’ with a single keyboard shortcut, Chrome requires users to open DevTools first (ctrl + shift + I on Windows or command + option + I on macOS). You can also open DevTools from the main menu by navigating to “Customize and control Google Chrome → More Tools → Developer Tools”).

Responsive Design Mode

DevTools will dock to the right by default, giving you more vertical space to work with. This is ideal because you’ll likely be focusing on mobile testing.

Next, click on the “Toggle device toolbar” (ctrl + shift + M on Windows or command + shift + M) icon in the DevTools panel to open Device Mode.

Toggle device toolbar
25%

💸 EXTRA 25% OFF ALL VERPEX MANAGED WORDPRESS HOSTING PLANS

with the discount code

SERVERS-SALE

SAVE NOW

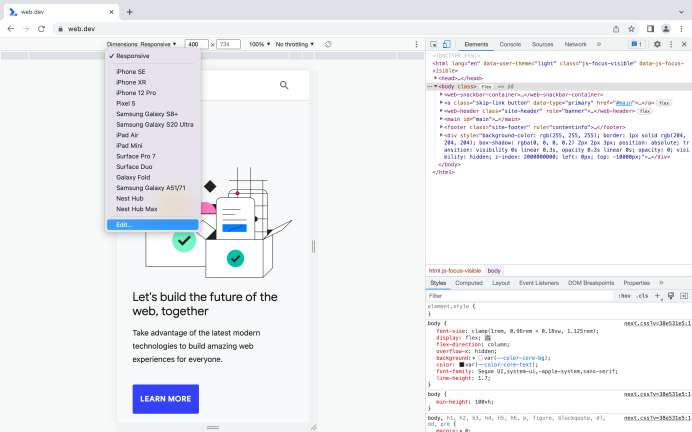

Choosing a Device Preset

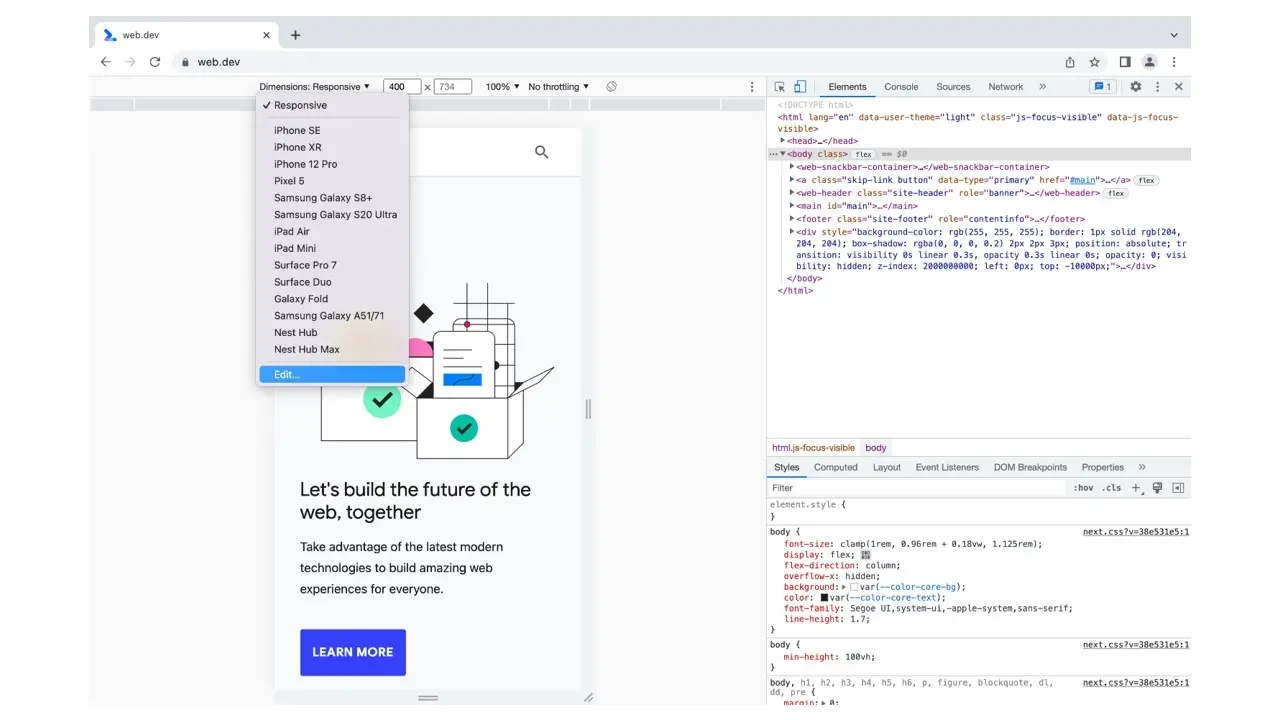

As you can see from the Device Mode toolbar, the first option is a dropdown that lets you choose a specific device to simulate. Choosing a device from this dropdown will make Device Mode simulate the device’s width, height, and Device Pixel Ratio (DPR). When a device isn’t being simulated, the “Responsive” option becomes active.

If there’s a device that you’d like to simulate and it doesn’t appear in the list of options, click on “Edit…” at the bottom of the list.

Choose a Device Preset

A panel where you’ll be able to customise which options appear in the list will appear on the right, replacing DevTools.

Dropdown list of devices

Alternatively, you can also click on the tabs under the Device Mode toolbar to quick-resize the viewport to common screen widths such as “Mobile S - 320px”, “Tablet - 768px”, and “Laptop - 1024px”.

quick-resize the viewport

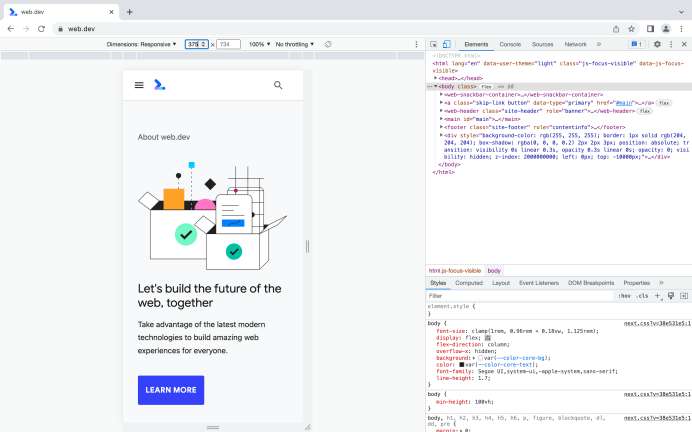

Specifying Custom Viewport Dimensions

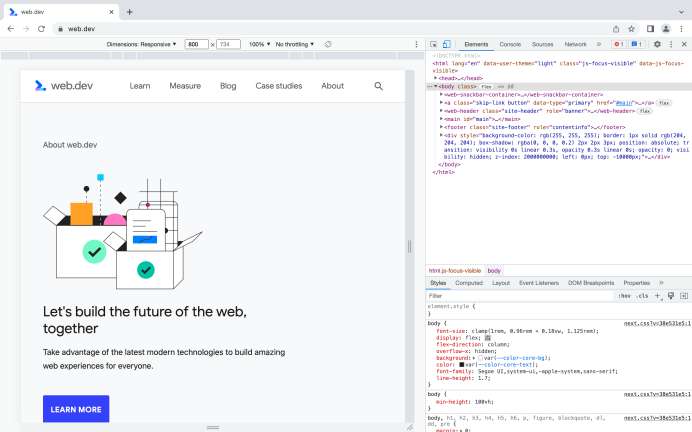

If you’d like to specify custom viewport dimensions, you can do so by typing them into the “Width” and/or “Height” input fields. When focused on either of these fields, you can use the up and down arrow keys to increment/decrement the value by 1px (hold shift to increment/decrement the value by 10px). If the Height field is left empty, the height will expand to fill any available vertical space (this is useful for when you only want to test websites on various screen widths).

custom viewport dimensions

If you’d rather test on various screen sizes by resizing the viewport manually, simply drag its bottom side, right side, or bottom-right corner handles. With this method, you’re essentially trading specificity for speed and convenience.

resizing the viewport manually

Quick-resizing and dragging are the two methods that you’ll likely use the most, due to how easy they are.

Adjusting the Zoom Level

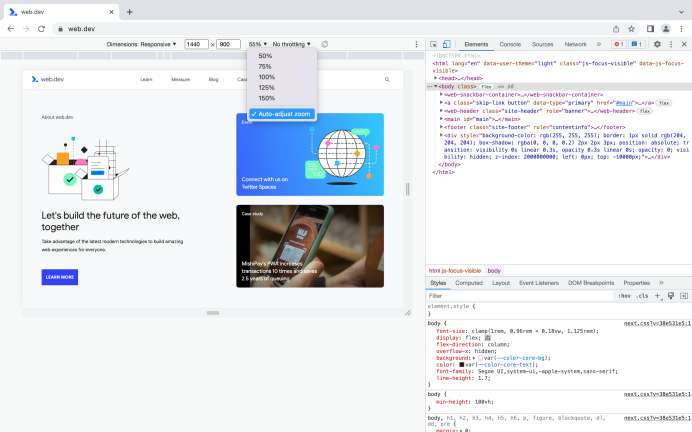

After the Width and Height input fields, the next option is the “Zoom” level. The options are 50%, 75%, 100%, 125%, and 150%. You’ll want to use smaller zoom levels (e.g. 50% and 75%) when testing on larger screen sizes so that you can observe the entire viewport unobstructed (however, when the “Auto-adjust zoom” option is checked, you probably won’t need to change the zoom level manually).

Adjusting Zoom Level

Simulating Slow Devices


After the zoom options there's the throttling options, which should say “No throttling” by default. Throttling is used to simulate websites on devices with slower CPUs and internet connections. Chrome’s Device Mode is easier to work with than Firefox’s Responsive Design Mode in this regard, offering just 3 simple options — “Mid-tier mobile”, “Low-end mobile”, and “Offline” (the latter of which mostly applies to Progressive Web Apps, of course).

Simulating the Slow Devices
90%

💸 90% OFF YOUR FIRST MONTH WITH ALL VERPEX CLOUD WEB HOSTING PLANS

with the discount code

MOVEME

Save Now

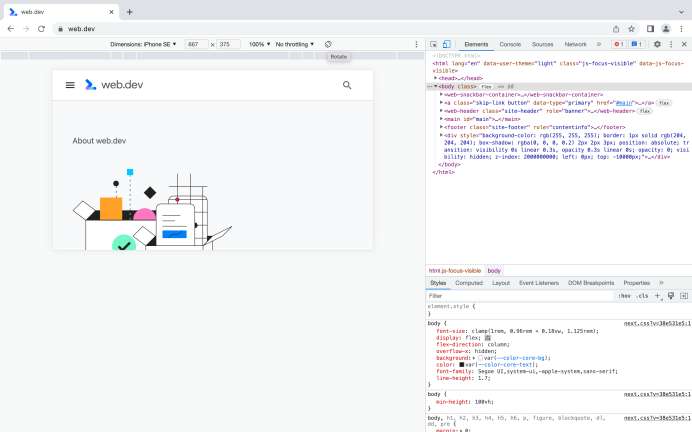

Switching Device Orientation


And finally, the last option in the Device Mode toolbar is “Rotate”, which toggles the orientation of the viewport. This feature will not only swap the width and height of the viewport, it’ll also respect any orientation-based CSS media queries that’ve been set.

Although not many users use websites in landscape orientation, it doesn’t hurt to optimise websites for landscape anyway (just in case).

Switch Device Orientation

More Options

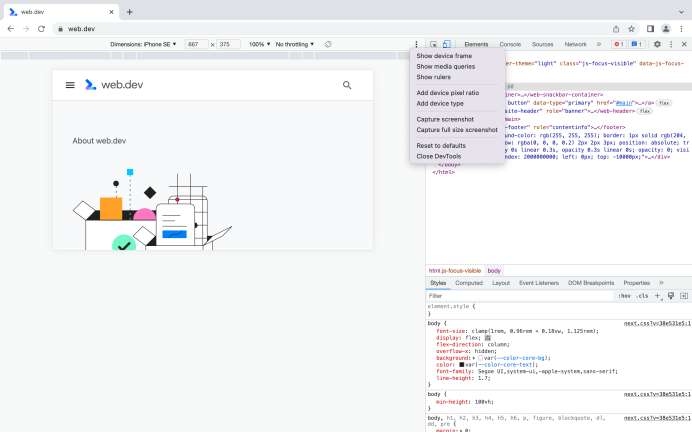

Additionally, there’s a “More options” icon at the right-most end of the Device Mode toolbar. Although these options aren’t as common, they’re still very useful. Let’s take a look at what they do and when to use them.

Google Responsive mode Option

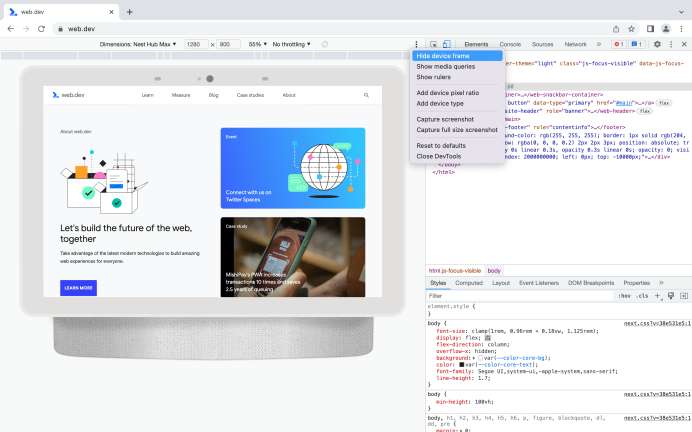

Show Device Frame

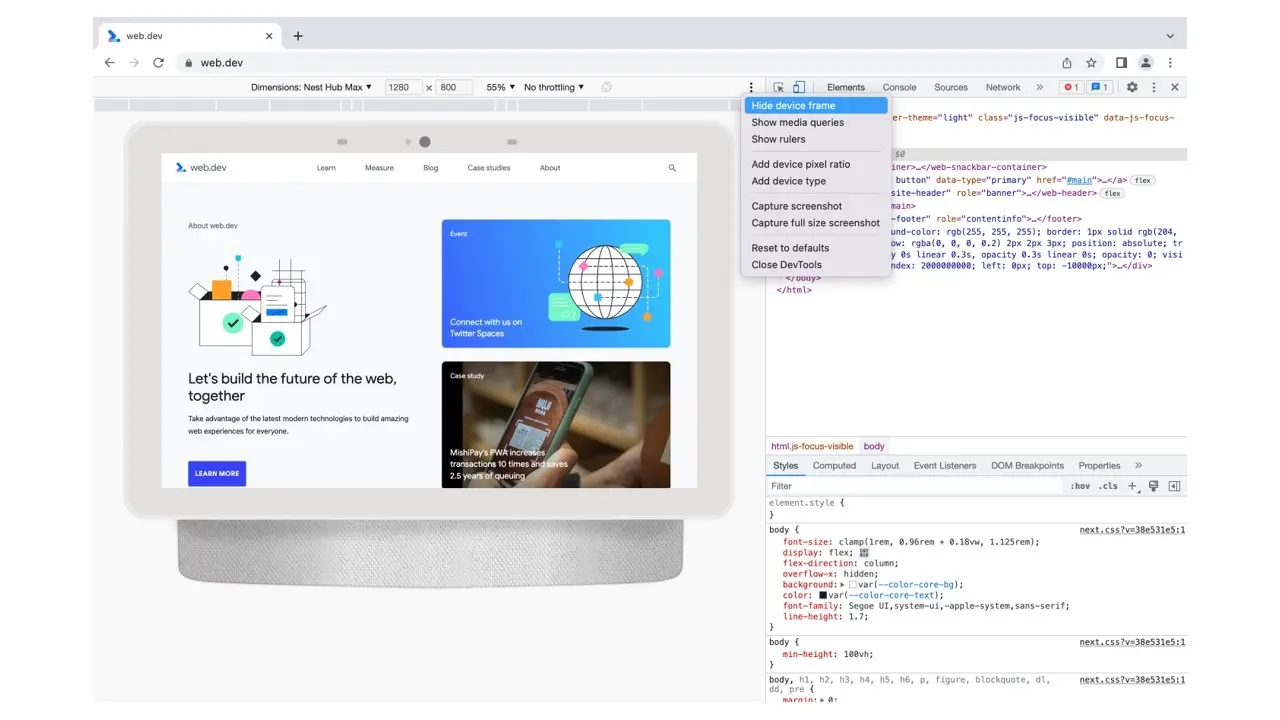

The first option in the list is “Show device frame”. Not all devices have frames, but for the ones that do, this option will wrap the viewport inside a visualisation of the device for added realism when testing.

Show Device Frames

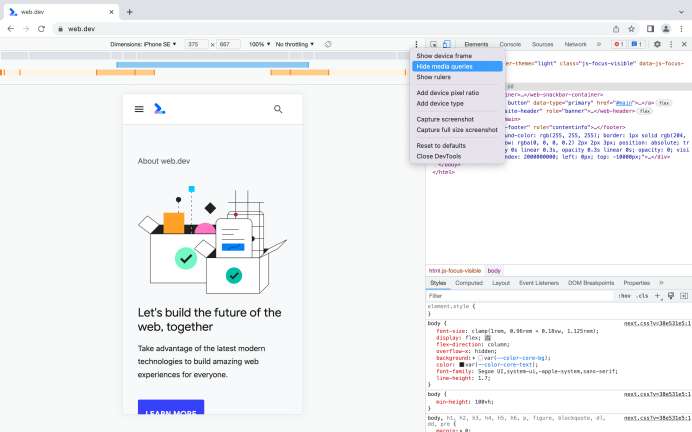

Show Media Queries

“Show media queries” will reveal all of the CSS media queries that the current webpage is using. Using this visualisation, you’ll be able to switch between these different media queries for faster testing (as long as the device is set to “Responsive”).

Show Media Queries option

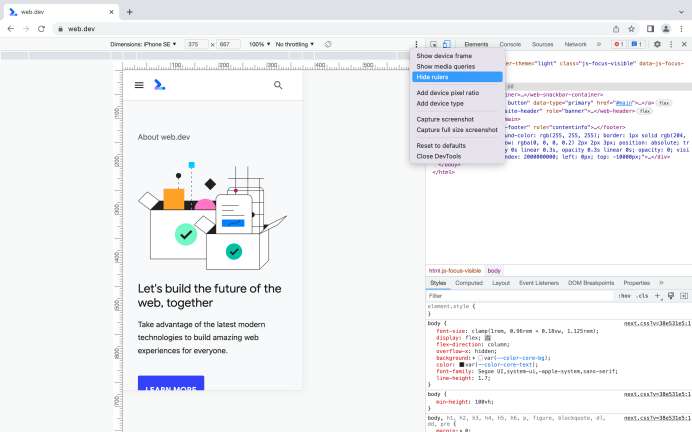

Show Rulers

“Show rulers'' will reveal pixel-based rulers that run alongside the top and left sides of the viewport, ideal for measuring things when the need arises. This is particularly useful for optimising the area above the fold, which is a critical region on most web pages due to how impatient users are today.

Show Ruler

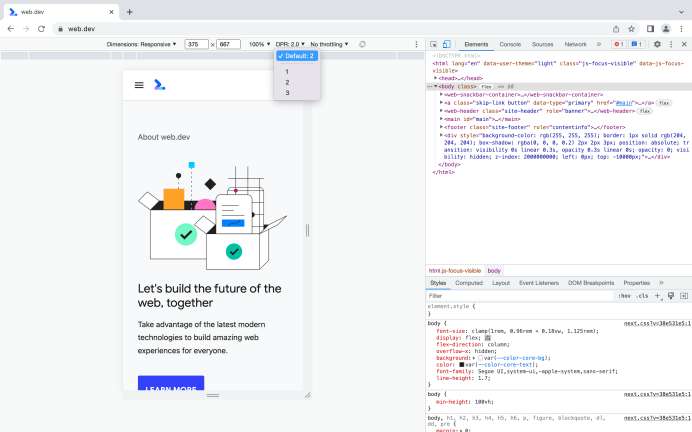

Add Device Pixel Ratio

“Add device pixel ratio” adds the “DPR” setting to the Device Mode toolbar. Unless your device is set to “Responsive”, this setting can’t be customised — otherwise, the options are “1”, “2”, or “3”.

Use this option to test DPR-related media queries, and more importantly, check that images are being served at the correct resolution. For example, devices with a DPR of 2 (that can squeeze 2 pixels into every point, for better display quality) will require images to be served at double-size (sometimes referred to as “2x” or “@2x”). You’ll know when they’re not because the images will appear blurry.

Device Pixel Ratio

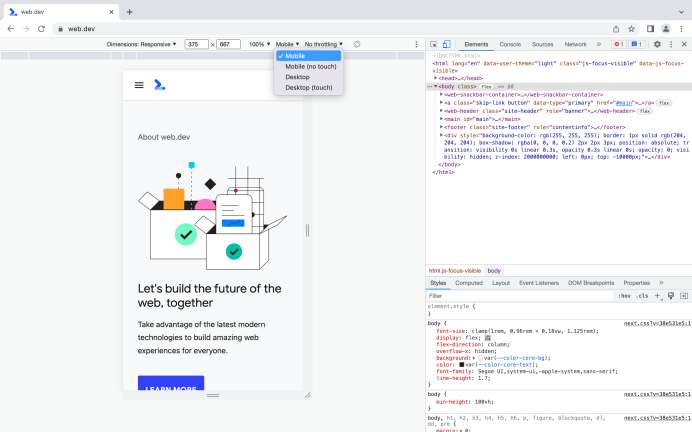

Add Device Type

“Add device type” also adds new options to the Device Mode toolbar. These options include “Mobile”, “Mobile (no touch)”, “Desktop”, and “Desktop (touch)”, which essentially enable us to switch between mouse and touch simulation. These options affect both JavaScript events and CSS states (e.g. CSS’s :hover pseudo element won’t work when touch simulation is active).

Adding Device Type

Capture Screenshot

If you’ve ever wanted to screenshot a live website for any reason, “Capture screenshot” is the best way to do it. It’s especially useful for screenshotting bugs and other concerns that you can then document so that they can be addressed by you or somebody else later, using the screenshot for added visual context.

“Capture screenshot” only captures the viewport.

Capture Full Size Screenshot

“Capture full size screenshot” captures the entire webpage, including the area below the fold.

Reset to Defaults

“Reset to defaults” will reset all Device Mode settings. This is useful for when too many settings have been set and you’d simply like to start from scratch.

Close DevTools

“Close DevTools” will close Device Mode, but also DevTools as well. The only way to close Device Mode without closing DevTools is by using the keyboard shortcut (ctrl + shift + M on Windows or command + shift + M on macOS) or by clicking on the “Toggle device toolbar” icon in DevTools.

20%

💰 EXTRA 20% OFF ALL VERPEX SHARED WEB HOSTING PLANS

with the discount code

AWESOME

Save Now

Conclusion


Chrome’s Device Mode is a terrific tool for testing responsive websites. Although it’s somewhat comparable to Firefox’s Responsive Design Mode (RDM), Google Chrome has a larger market share and allows web developers to rapidly switch between common screen widths such as “Mobile S - 320px”, which gives it a slight edge over its competitors.

However, Polypane and Sizzy are both decent options too. Both of these web browsers are specifically designed to help web developers test responsive websites, and have a number of features that other web browser’s don’t. They’re both worth a look, at least.

Either way, remember to test in all web browsers — Firefox, Edge, Opera, and of course Google Chrome — since they all interpret front-end code in different ways. This includes all relevant web browser versions across all relevant operating systems.

Responsive design testing helps to provide a great experience for all users, and doesn’t require as much work as you’d think.
